Different standards’ guide bushing parts

Short Description:

The Bushing Parts Series is a collection of superior quality bushing parts designed to provide exceptional performance and durability. Developed using the latest technology and premium materials, these parts are ideal for a wide range of applications, including industrial machinery, automotive vehicles, and home appliances.

Product Detail

Product Tags

Product Introduction

Guide pin features

Hardening and precision grinding

Bushing Parts Series
Bushing Parts Series1

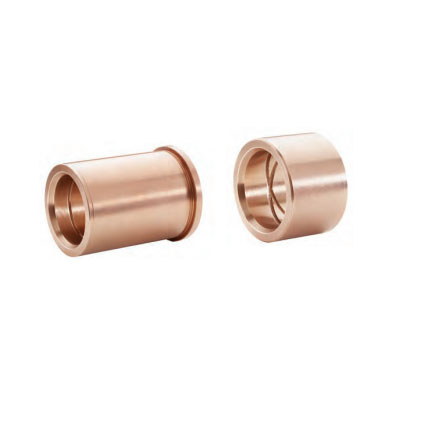

Shoulder/straight bushing features

Made of the highest quality alloy steel. They are hardened and precision ground to extend their service life under harsh molding or die casting conditions.

Bronze plated shoulder bushings and straight bushings have internal oil grooves plated with copper for smooth, scratch free operation.

Bushing Parts Series2
Bushing Parts Series3

Characteristics of guide pin self-lubricating bushing

Self lubricating bushings can save time and money in design, construction, and injection mold operations. They are ideal for clean room conditions or any injection molded parts that prohibit the use of external lubricants for applications such as medical, electronic, and food related products. Their built-in lubrication capabilities also make them a good choice for fast cycling, high yield molds.

Characteristics of Zhongtuosi

1. Keep the ejection assembly aligned.
2. Support the weight of the ejection assembly throughout the cycle.
3. Reduce wear of ejection components.
4. Prevent the ejection plate from turning over.

Bushing Parts Series4
Bushing Parts Series5

Characteristics of the support column

Support columns should be used extensively because they greatly increase the ability of the mold to support the cavity, runner projected area, and runner. By providing additional support, they prevent deflection of the mold. The absolute necessity of using props is determined by standard material strength formulas are used. For example, 117 ⁄ 8 x 15".

Characteristics of the gate bushing

The gate bushing allows the mold to be installed on an injection molding variety machine. Accuracy and interchangeability permits easy transfer of molds to another machine.

Bushing Parts Series6


One of the key advantages of the Bushing Parts Series is its ability to provide reliable and stable performance even in the most demanding conditions. Additionally, these parts are designed to withstand extreme temperatures and exposure to harsh chemicals, ensuring long-lasting performance over an extended period of time.


The Bushing Parts Series features a wide range of bushing parts including sleeve bearings, flanged bearings, thrust washers and more. These parts are constructed from high-quality materials such as bronze and can be customized to fit the specific requirements of different applications.


Although the Bushing Parts Series is designed to provide superior performance, there are a few precautions that should be taken to ensure optimal performance. For instance, these parts should be installed by an experienced technician to ensure proper installation and to avoid damage to the parts.

Application Scenarios

The Bushing Parts Series is suitable for a wide range of applications, including high-speed rotating machinery, gearboxes, compressors, and pumps. Additionally, these parts can also be used in power transmission systems, which require high levels of performance and durability. Some of the other applications of these parts include electric motors, valves, and hydraulic systems.

In conclusion, the Bushing Parts Series is an excellent choice for anyone looking for high-quality bushing parts that provide excellent performance and durability. These parts are ideal for a wide range of applications, and our team of experts is always on hand to provide the necessary support and assistance to ensure that your requirements are met.
