High precision slider for die casting mold and injection mold

Short Description:

Kunshan BCTM(BCTM) is highly knowledgeable team developed through years of hands on injection mold experience providing innovative solutions to injection industry.

BCTM engineers in quality at the design stage that provides for process capable complex tooling’s. Our experienced engineering team each has 18 Years injection mold experience in their specialized area including Tool Manufacturing.

BCTM provides high quality materials & heat treating with low cost – High quality tool manufacturing giving customers the best value available.

Our Tool shop has been building injection mold for Europe, North America, Japan and other countries for over 10 years.

Product Detail

Product Tags

Material / Steel

Kunshan BCTM can provide very cost-effective local material with very excellent performance, which has gain all of our customers‘ recognition. We also can provide the imported steel from different brands all over the world, such as ASSAB, Schmiedewerke Gröditz, Hitachi Metals, Schmolz+Bickenbach, Finkl Steel, Scana, Crucible, Posco, Doosan, Daido Steel, Koshuha Steel, Sanyo Steel, Nachi, Sinto, Saarstahl, Buderus, Kind & Co, Aubertduval, Erasteel, Sorel forge, etc.


We have world-class machines to do milling, grinding, CNC machining, EDM, wire-cutting, high-speed milling, etc. Our quality is very good and stable. Besides the state-of-art machines, we have the experienced technology team and production team. All of them have at least 18 years of working experience. They can quickly and clearly get customer's requirements. Their rich experience can help customer solve have won the recognition from our customers.

The types of production:
CNC Equipment: High speed CNC vertical M/C's.
Sink EDM's.
Wire EDM's.
Various manual machine tools.
CNC lathes.
Spotting press.
Surface grinders.

Detail Drawing

High Precision slider 01

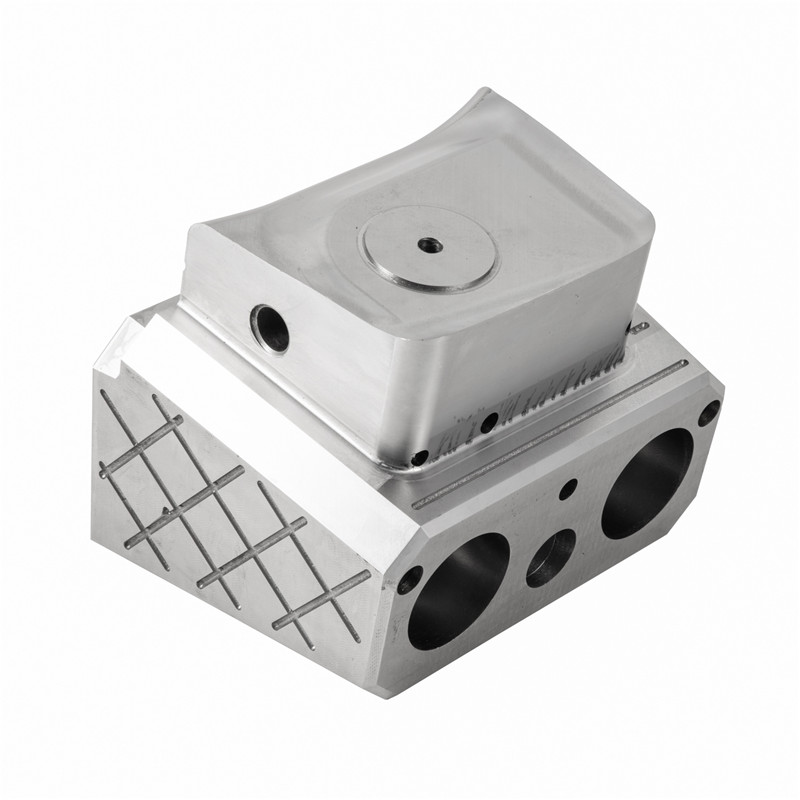

High Precision sliders03
High Precision sliders04
High Precision sliders02
High Precision sliders05
High Precision sliders06

Soft We Use


Tool Design

Kunshan BCTM Co., Ltd. utilizes a multi-disciplinary approach to tool designs including our tooling specialists, tool designer and process specialists.
• Tool design verification utilizing Mold flow simulation software for die filling, part thermos and FEA analysis.
• Reverse engineering of tooling to create design in solids format.
• CAD: Unigraphics, AutoCad, Mold flow software.


Quality Equipment
Coordinate Measuring Machine with CAD interface.
Hardness tester.
Plug and Thread gauges.

Quality System Implementation
• Quality System Implementation, including ISO 9001\2005 documenting the Quality Manual, Procedures and Work Instructions.
• Project Management through Customer requirements.
• Provide dimensional reports as required by Customers.
• Provide Material certifications as required by Customers.
• In –process and final inspections prior packaging and shipping.

When material arrives at factory, we will check the hardness, flaw detection, dimension and other items to make sure everything is correct. We implement the process inspection to try to find issues as early as possible to save time and avoid bigger cost lose. After production finished, we will provide CMM report.
